AMPSEAL 35 Position Waterproof Wire-to-Board Connector (Model 776164-4) is designed for harsh automotive environments. It offers a robust and sealed solution for protecting electronic systems against water and other elements. This connector is suitable for various applications such as engine control units, sensors, and actuators. It features a copper alloy contact material with gold or tin plating for optimal conductivity and corrosion resistance. Made of PBT GF, it ensures durability and operates within a temperature range of -40°C to 125°C. The connector ensures a secure seal for reliable performance even in adverse conditions.

1. Robust Sealing Technology: The 206150-1 features advanced sealing mechanisms that protect against moisture, dust, and other environmental contaminants, ensuring long-term reliability in even the most challenging conditions.

2. Immediate Availability: Despite being a special order item, this connector ships immediately from TE's inventory, reducing lead times and providing customers with the assurance of swift delivery.

3. High-Quality Construction: Made with premium materials, the 206150-1 offers superior durability and resistance to corrosion, a testament to TE Connectivity's commitment to excellence in manufacturing.

4. Compatibility Assurance: With a range of compatible parts and accessories, the 206150-1 ensures seamless integration with existing systems, enhancing overall system performance and reliability.

5. Customizable Solutions: TE Connectivity provides the flexibility to tailor solutions to specific customer needs, showcasing the company's ability to innovate and meet unique application requirements.

1-173851-1 is a versatile AMP Multilock Connector System designed for wire-to-wire connections, featuring 12 positions with a centerline pitch of 3.5 mm and 5.5 mm. It's crafted from PBT material and offers a natural color housing for female terminals. This connector is not sealable, ensuring a reliable signal transmission with an operating temperature range of -30 to 105°C and a UL 94HB flammability rating.

DEUTSCH DT wedgelocks help confirm proper contact alignment within each connector. They are assembled at the mating interface and press into place. Wedgelocks are required components for all DEUTSCH DT housings.

DEUTSCH DT Plug connectors are male connectors available in 2, 3, 4-, 6-, 8, 12- and 48 positions. These sealed, inline plug connectors are compatible with both DEUTSCH solid and stamped & formed size 16 socket contacts.

• ​Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Female Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : Integrated in Housing

• Mixed & Hybrid Connector : No

Configuration Features

• Number of Positions : 2

• Number of Rows : 1

• Blank Cavity Position : 0

Electrical Characteristics

• Operating Voltage (VAC): 250

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 250

Body Features

• Cable Exit Angle : 180°

• Primary Product Color : Gray

Contact Features

• Contact Type : Socket

• Contact Size : Size 16

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

Mechanical Attachment

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

Housing Features

• Housing Material : PA GF

• Centerline (Pitch) : 5.46 mm [ .215 in ]

Dimensions

• Compatible Insulation Diameter Range : 2.23 – 3.68 mm [ .087 – .144 in ]

• Product Length : 28.4 mm [ 1.118 in ]

• Product Width : 15.01 mm [ .591 in ]

• Connector Height : 15.77 mm [ .621 in ]

Usage Conditions

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

• Circuit Application : Power

Industry Standards

• UL Flammability Rating : 12mm Flame Test per Standard UL-94

• Compatible With Agency/Standards Products : SAE J2030

• Degree of Protection : IP68, IP6K9K

Packaging Features

• Packaging Method : Box

• Packaging Quantity : 1800

Other

• Connector Position Assurance Capable : No

• Serviceable : Yes

Our AMPSEAL 16 connectors are designed for off-road, heavy-duty industrial, recreational and agricultural applications. With an operating temperature of up to 150°C, the range is suitable for extended on-engine, after-treatment, and powertrain applications. The AMPSEAL 16 connectors are sealed connectors offering rugged reliability and preventing moisture and dirt from contaminating connections. The installation time is reduced as the receptacle and pin housings come fully assembled in a one-piece design.

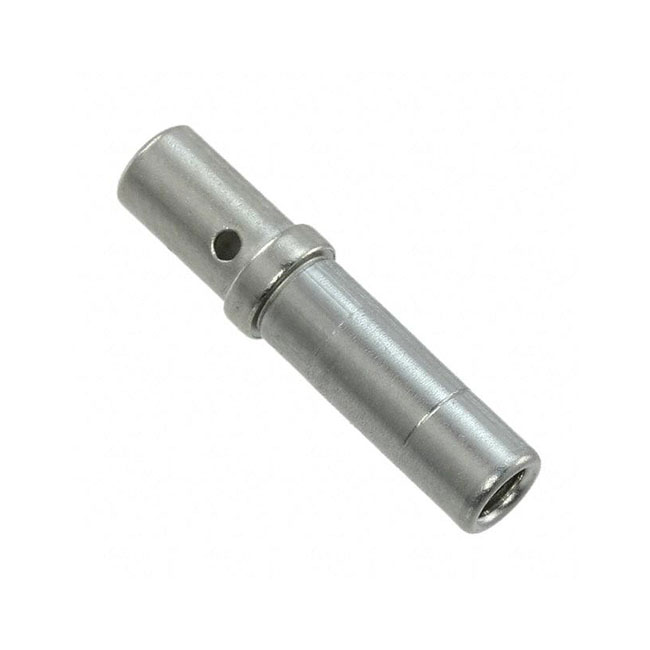

The Dynamic 1000 contact tabs and receptacles are designed with a 3 - 5A contact current rating, 28 - 22 wire size, and available with gold or tin plating. Used for signal circuit application.

Terminal Seal Type : Family Seal or Unsealed

Crimp Type : F-Crimp

Typical Current Rating (A): 7.5

Wire Contact Termination Area Plating Material : Nickel

Contact Fabrication : Stamped & Formed

Contact Size : Size 20

Terminal Type : Socket

Mating Pin Diameter : 1.02 mm [ .04 in ]

Interface Plating : Nickel (Ni)

Termination Method to Wire & Cable : Crimp

Product Terminates To : Wire

Compatible Insulation Diameter Range : 1.91 – 3.18 mm [ .075 – .125 in ]

Wire Size (AWG): 16 – 14

Wire Size (mm²): 1. – 2.5

Wire Size Search (mm²): 1, 1.5, 2.5

Wire Size Search (AWG): 14, 16

Operating Temperature (Max) : 125 °C [ 257 °F ]

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Compatible With Wire Base Material : Copper

Packaging Method : Reel

Packaging Quantity : 4000

Terminal Transmits : 0 – 24 A (Low Power)

Customer Preferred Contact : Yes

Product name 1062-16-1444

Rated Voltage: 12V AC,DC

Rated current: 3mA AC,DC

Contact resistance: 16MΩ max

Insulation Resistance: 1000MΩ min

Withstand Voltage: 1000V AC/minute

Temperature: -25℃~+85℃

Housing: (Nylon)UL94-V0(2)

Certification REACH,ROHS,ISO9001,ISO14001,TS16949

ODM/OEM are available

1) Fast response to customer needs

2) We have accumulated industry experience in various types of industrial applications to help provide customers with suitable solutions.

3) Engineering and technical support for connector and cable assembly structure design,mold manufacturing,etc

4) Support small batch customization to meet customers' personalized needs

5) Our product is suitable for harsh industrial environment, anti-interference, anti UV, vibration resistance, temperature resistance, oil resistance, etc. the waterproof grade can reach above IP67

6) The materials meet the requirements of environmental protection, effectively save energy and reduce the pollution of harmful substances.

ODM/OEM are available

1) Fast response to customer needs

2) We have accumulated industry experience in various types of industrial applications to help provide customers with suitable solutions.

3) Engineering and technical support for connector and cable assembly structure design,mold manufacturing,etc

4) Support small batch customization to meet customers' personalized needs

5) Our product is suitable for harsh industrial environment, anti-interference, anti UV, vibration resistance, temperature resistance, oil resistance, etc. the waterproof grade can reach above IP67

6) The materials meet the requirements of environmental protection, effectively save energy and reduce the pollution of harmful substances.

This automotive wire harness assembly is designed for Car Body Control Module (BCM) systems, featuring male-to-female connection (precise pin alignment, error-free docking) and waterproof performance (IP67+). It realizes stable transmission of both power (12V/24V) and data signals (CAN bus, LIN bus) between BCM and other automotive electronic modules (lighting, door locks, windows), ensuring the normal operation of automotive body functions (e.g., automatic lighting, central locking) and avoiding function failures caused by poor connection.

This high-performance wire harness assembly integrates electrical wiring and strain relief molding, focusing on enhancing connection stability (reducing cable stress by 80% compared to standard harnesses) and durability (extending service life by 3x). It effectively reduces cable stress caused by pulling, bending, or twisting, prevents damage to cable conductors and insulation layers, and ensures long-term high-performance operation of equipment in high-load and frequent-movement scenarios.
