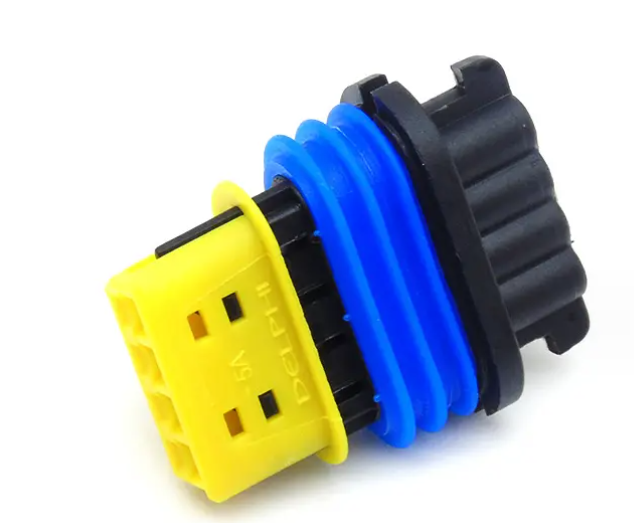

APTIV 15336035 4Pos Sealed GT150 Automotive Connectors Cable Mount

Product Overview

The APTIV 15336035 is a highly engineered 4-position female receptacle designed to meet the rigorous demands of modern automotive wiring architectures. Crafted from industrial-grade black nylon, the housing presents a durable, matte finish that feels exceptionally resilient to the touch, capable of withstanding significant mechanical stress during assembly and daily operation. When operators pair this receptacle with the appropriate GT150 male terminals, silicone cable seals, and cavity plugs, they will notice a distinct, audible click and firm tactile feedback, instantly confirming a secure, vibration-proof lock.

This cable-mount connector is purpose-built to streamline high-volume wire harness production. Its fully sealed architecture acts as an impenetrable barrier against dust, moisture, and aggressive engine compartment chemicals, guaranteeing uninterrupted signal and power transmission even in the most unforgiving under-hood and chassis environments. By providing a standardized, highly dependable interface, this component significantly reduces assembly time, minimizes the risk of field failures, and supports the stringent procurement requirements of global automotive manufacturers and electronics integrators.

Technical Specifications

Accurate technical data is crucial for engineering validation and system integration. The following table details the precise specifications of the APTIV 15336035 connector, ensuring it aligns perfectly with your electrical and mechanical requirements. Operating safely within a wide thermal window of -40℃ to +125℃, this component is engineered to handle a continuous current rating of 15 A, making it highly suitable for a diverse array of low-to-medium power automotive circuits. The single-row, 4-position configuration is optimized for space-constrained installations, while the crimp termination method guarantees a gas-tight electrical connection that resists degradation over time. Supplied in factory packaging of 1500 pieces, it is primed for immediate integration into automated production lines. Please review the exact parameters below to confirm compatibility with your specific application demands.

Key Features & Performance Advantages

Superior Sealing & Environmental Resistance

Engineered for deployment in the most exposed vehicle zones, this 4-position cable mount receptacle utilizes an advanced sealing mechanism that completely isolates the internal contacts from external contaminants. Before leaving the facility, the design undergoes rigorous validation, including prolonged salt spray corrosion testing, severe thermal shock cycles, and deep fluid immersion trials. This meticulous quality control ensures a zero-defect rate even when subjected to road salt, engine oils, transmission fluids, and pressurized washing. The resilient nylon housing maintains its structural integrity across extreme temperature fluctuations from -40℃ to +125℃, preventing material embrittlement in sub-zero climates and resisting thermal deformation near exhaust routing or engine blocks.

High Electrical & Mechanical Reliability

Delivering a dependable 15A current capacity, the GT150 series connector acts as a steadfast conduit for critical sensor data and power distribution. Manufactured in strict accordance with IATF 16949 automotive quality management systems, every unit guarantees consistent, car-grade safety and performance. Furthermore, the materials comply fully with global RoHS and REACH environmental standards, facilitating unhindered market access across international borders. The mechanical resilience of the connector is validated through extensive high-frequency vibration and multi-cycle mating tests, ensuring the crimped connections remain intact and secure despite the continuous mechanical shock inherent in daily vehicle operation.

Streamlined Design for Bulk Manufacturing

Time is a critical factor in large-scale wire harness assembly. The free-hanging cable mount configuration of this receptacle provides exceptional routing flexibility, allowing engineers to optimize wire paths without constraint. To further assist assembly operations, we provide comprehensive processing guidelines, including standardized crimp parameters and recommendations for automated applicator tooling. This ensures that operators can achieve optimal crimp heights and pull-out forces consistently, drastically improving production yield and minimizing scrap rates. The standardized GT150 footprint guarantees full interchangeability with existing original components, simplifying inventory management and reducing the engineering hours required for new platform design-ins.

Complete Ecosystem & Mating Compatibility

To maximize procurement efficiency, this receptacle operates perfectly within a comprehensive connection ecosystem. It pairs flawlessly with standard GT150 series male terminals, custom-molded silicone wire seals, and blind cavity plugs. By sourcing these precisely matched accessories simultaneously, harness manufacturers can prevent compatibility issues on the assembly line, ensuring the integrity of the weather-tight seal and the reliability of the electrical contact. This holistic approach to component sourcing eliminates the friction of dealing with multiple vendors and accelerates the overall production timeline.

OEM/ODM Customization Services

Recognizing that every automotive project carries unique specifications, we deliver extensive OEM and ODM customization solutions tailored to the APTIV 15336035 connector. Beyond standard component supply, our capabilities encompass custom wire harness pre-assembly, housing color modifications for complex circuit identification, and specific parameter adjustments for specialized operational environments. Our dedicated in-house engineering team collaborates closely with your designers throughout the entire design-in phase, offering rapid sample development, rigorous performance validation, and comprehensive project support.

To secure your production continuity, we implement strict supply chain and delivery protocols. We accommodate flexible Minimum Order Quantities (MOQs) to support both pilot runs and full-scale mass production, ensuring rapid turnaround times. All bulk shipments utilize industrial-grade, anti-static, and moisture-barrier packaging to guarantee the components remain pristine during long-haul transit and extended warehousing. Furthermore, our commitment extends well beyond delivery; we provide localized technical response teams, long-term warranty assurances, and professional Failure Analysis (FA) services to mitigate operational risks throughout the vehicle's entire lifecycle.

Applications

The versatile and highly sealed nature of this 4-pin automotive connector makes it an indispensable component across a broad spectrum of transportation and vehicular systems. Its proven durability ensures optimal performance in the following critical applications:

• Automotive Powertrain Control Systems: Facilitating reliable connections for engine sensors, fuel injection modules, and ignition coils where heat and vibration resistance are paramount.
• Body Control Modules (BCM): Serving as a dependable interface for central locking, power windows, and climate control distribution networks.
• Exterior and Interior Lighting Systems: Providing moisture-proof connections for LED headlamps, taillight assemblies, and dynamic interior ambient lighting circuits.
• Chassis Electronic Control Systems: Ensuring uninterrupted signal flow for anti-lock braking systems (ABS), electronic stability control (ESC), and active suspension sensors exposed to road debris and water spray.
• Commercial Vehicle Electrical Wiring: Delivering heavy-duty performance for the extended wire routing found in long-haul trucks, buses, and fleet vehicles.
• Off-Highway Vehicle Electronics: Withstanding the extreme dust, mud, and mechanical shock typical of construction machinery, mining equipment, and agricultural tractors.
• Automotive Aftermarket Replacement Parts: Offering a direct, factory-grade replacement solution for repair shops and aftermarket harness builders, ensuring long-lasting repair integrity.
