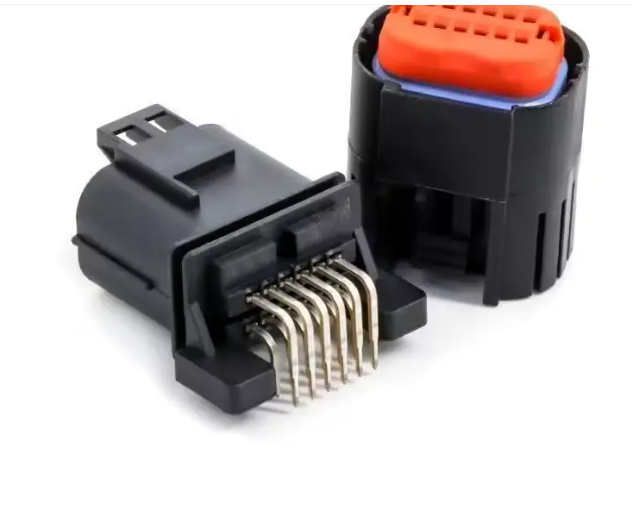

JAE MX23A12NF1 Waterproof 12Pin Automotive Connectors Vehicle Wiring

Product Overview

Engineered specifically for highly demanding vehicle wiring architectures, the JAE MX23A12NF1 waterproof 12-pin automotive connector establishes an unyielding electrical bridge across complex automotive networks. When handling this interconnect component, assembly technicians immediately notice the rigid, premium glass-fiber-reinforced PBT (PBT-GF) housing. This specialized material feels exceptionally solid to the touch, resisting physical deformation and structural fatigue even under severe mechanical stress. The precisely molded silicone sealing rings offer a distinct tactile compression during mating, confirming a secure, impenetrable environmental barrier. Designed to strictly comply with RoHS environmental directives and mainstream automotive electronic standards, this genuine factory component prevents signal degradation in critical circuits. By integrating pure copper terminals, it guarantees optimal electrical conductivity while maintaining structural integrity over years of continuous operation. Automotive original equipment manufacturers, harness assembly plants, and component integrators rely on this exact specification to eliminate intermittent connection failures, streamline their assembly line processes, and ensure global market compliance without friction.

Technical Specifications

The following parameters detail the exact factory specifications for the MX23A12NF1. Every metric, from the pin count to the packaging standards, remains strictly aligned with the original brand guidelines to guarantee drop-in replacement capability and zero-modification integration for your existing harness designs. Review the exact data below to confirm compatibility with your current project requirements.

Key Features & Performance Advantages

Superior Waterproof & Environmental Resistance

The waterproof 12Pin automotive connectors utilize a highly engineered sealed structure to block moisture, corrosive fluids, and fine dust particles. Operating flawlessly across an extreme temperature range of -40°C to +125°C, the housing withstands the intense radiant heat of engine compartments and the freezing, wet conditions of exposed undercarriages. The specialized silicone grommets maintain their elasticity under thermal cycling, providing a tight acoustic "click" upon full insertion that confirms a weatherproof lock. This resilience protects sensitive power and signal lines from the harsh vibrations and fluid exposures typical in heavy-duty transit, eliminating short circuit and connection failure risks caused by environmental exposure.

High-Reliability 12-Pin Interconnect Design

Space constraints within modern vehicle wiring harnesses require intelligent packaging. This connector features a 2.5mm high-density pitch and a low-profile architecture, achieving a maximum mated height of merely 22.2mm. Such a compact footprint effortlessly fits into cramped motorcycle fairings or dense automotive dashboards. Furthermore, the design integrates a Terminal Position Assurance (TPA) mechanism alongside a double-fin terminal retention structure. This physical safeguard absolutely prevents terminal push-out, accidental loosening, or incomplete insertion during rapid factory assembly, shielding harness manufacturers from costly rework and field failures. The standardized 12-pin configuration supports simultaneous transmission of multiple signals, simplifying layout and reducing after-sales maintenance costs for Tier 1 suppliers.

Flexible Supply & Universal Compatibility

Sourcing authentic interconnects often involves navigating rigid volume requirements. We eliminate these barriers by accepting small batch orders while maintaining scalable capacity for mass production. To further accelerate your project timelines, we guarantee rapid dispatch, typically shipping within 3 to 5 business days. Buyers also benefit from a comprehensive 5-year warranty, securing long-term supply chain stability. For a frictionless procurement experience, we supply the complete mating ecosystem, including the matching female receptacle (MX23A12SF1), front lock covers (MX23A12XF1), specialized crimp terminals, and waterproof dummy plugs. This delivers a complete, ready-to-assemble kit that lowers application and replacement thresholds for aftermarket distributors and prototype development teams.

OEM/ODM Customization Services

Beyond supplying standard components, our facility offers extensive OEM and ODM customization programs tailored to unique vehicle wiring challenges. We understand that efficient assembly lines require parts delivered in specific formats. Therefore, we provide specialized packaging configurations designed directly for your automated pick-and-place machinery or manual assembly stations. Our engineering technicians can perform pre-assembly of the JAE MX23A12NF1 with its corresponding terminals and wire harnesses, delivering a plug-and-play module that drastically reduces your internal labor costs. For strict quality control and lifecycle tracking, we implement custom laser marking and labeling on the connector housings. Whether you require specific wire lengths, customized pin configurations, or specialized testing protocols for unique environmental applications, our dedicated technical support team collaborates with you from the initial prototype phase through to full-scale mass production.

Applications

The exceptional durability and compact geometry of the JAE MX23A12NF1 waterproof 12Pin automotive connectors make them an indispensable asset across a wide spectrum of transportation and heavy machinery sectors. Its proven reliability supports critical functions in the following demanding environments:

• Passenger Vehicle Systems: Ideal for main body wiring harnesses, door control modules, and complex dashboard electronics where space is strictly limited.
• Engine Compartment Wiring: Withstands extreme thermal cycling and fluid exposure, protecting vital sensor and fuel injection data lines from degradation.
• Commercial and Transit Vehicles: Provides unwavering connectivity for bus electrical control systems and heavy-duty truck lighting arrays subject to constant road vibration.
• Off-Highway & Agricultural Equipment: Actively seals out mud, dust, and moisture in tractors, excavators, and other machinery operating in unforgiving outdoor environments.
• New Energy Vehicles (NEV): Supports low-voltage control circuits and battery management system (BMS) communication lines with stable, interference-free transmission.

By integrating this specialized waterproof connector, engineering teams ensure that every electrical pulse reaches its destination, safeguarding the operational integrity and longevity of the entire vehicle architecture.
