6195-0060
Sumitomo

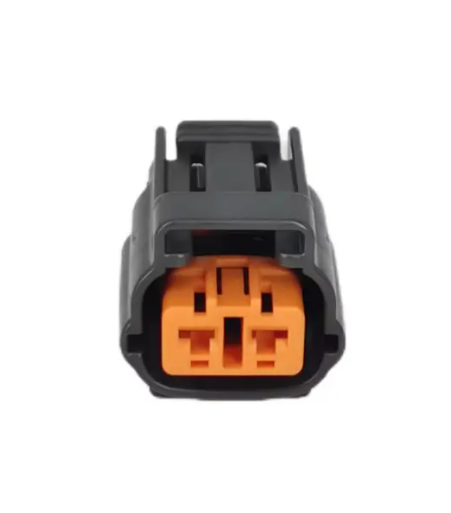

As a core product of the Sumitomo DL waterproof series, this sealed female connector is specially designed for high-stability automotive harness applications, providing reliable power and signal transmission solutions for automotive OEMs, harness processing plants, and automotive electronic component suppliers. Made in Japan with original brand standards, the 6195-0060 features excellent sealing performance, stable electrical characteristics, and long-term durability, making it a preferred choice for 2-circuit automotive electrical interconnect projects.
Parameter | Specification |
Part Number | 6195-0060 |
Brand | Sumitomo |
Product Type | Sealed Female Automotive Connector |
Pole Count | 2 Pole (2P) |
Gender | Female (F) |
Matched Part | 6195-0057 (DL Waterproof Series) |
Housing Material | PBT |
Place of Origin | Japan |
Minimum Insulation Resistance | 100MΩ |
Maximum Initial Contact Resistance | 3mΩ |
Maximum Durability Contact Resistance | 10mΩ |
Maximum Leakage Current | 100μA |
Color | Dark Grey |
Minimum Packing Quantity | 100 PCS |
Full Box Packing Capacity | 500 PCS |
The 2P sealed female automotive connector adopts a professional DL series waterproof sealing structure, with an initial sealing minimum of 49.0kPa and a durability sealing minimum of 29.4kPa, effectively preventing moisture, dust, and chemical erosion in harsh automotive environments. This superior sealing performance ensures stable connection of the Sumitomo 6195-0060 in engine compartments, chassis, and other high-vibration, high-humidity scenarios, greatly reducing the failure rate of automotive harness systems.
Engineered with high-quality PBT housing material, the 6195-0060 delivers outstanding insulation and heat resistance, with a minimum insulation resistance of 100MΩ to prevent current leakage and short circuits. The contact system maintains a maximum initial contact resistance of 3mΩ and a post-durability resistance of no more than 10mΩ, ensuring low-loss power and signal transmission over the product's entire service life, with a 100μA maximum leakage current limit to meet strict automotive electrical safety standards.
Designed for the Sumitomo DL waterproof series, the Sumitomo 6195-0060 is fully compatible with the matched male connector 6195-0057, with a standardized 2-pole layout that simplifies on-site assembly and harness processing. The TYPE2 clamp bracket design ensures secure locking after installation, preventing loosening caused by vehicle vibration, and reducing assembly time and after-sales maintenance costs for business customers.
We provide end-to-end OEM/ODM customization services for the Sumitomo 6195-0060 and supporting automotive harness solutions to meet personalized needs of global business customers. Customizable services include custom terminal crimping and harness pre-assembly, customized packaging specifications for automated production lines, laser marking and traceability coding for batch management, and material and color adjustments for special application scenarios. Our professional R&D and technical team provides full-cycle support, from sample customization to mass production, to ensure products fully meet your project's technical and production requirements.
The Sumitomo 6195-0060 2P sealed female automotive connector is widely used in automotive and transportation electrical systems, including automotive lighting circuits, sensor wiring, and small power device connections; passenger car and commercial vehicle body control module auxiliary circuits; motorcycle and off-road vehicle electrical system sealed connections; automotive aftermarket repair and replacement harness components; and new energy vehicle low-voltage auxiliary circuit and signal transmission systems.
All Sumitomo 6195-0060 connectors we supply are original Japanese-made products, with strict batch quality testing before delivery. Our products comply with IATF16949 automotive quality management system certification and Sumitomo's original factory quality standards, with full inspection of key electrical parameters including insulation resistance, contact resistance, and sealing performance for each batch. We implement full-process quality control to ensure every product meets automotive-grade high-reliability requirements, providing stable and consistent supply for long-term cooperative customers.
For the 6195-0060 sealed automotive connector, we adopt standard original packaging, with a minimum packing quantity of 100 PCS per bag and a full box capacity of 500 PCS, to ensure product protection during transportation. We also provide customized packaging solutions according to customer's automated production and warehousing needs. We support flexible delivery options, including international express for urgent sample and small batch orders, sea freight and air freight for bulk mass production orders, with a stable and controllable delivery cycle to match your production plan. All products undergo 100% appearance and performance sampling before shipment to ensure intact packaging and qualified quality.
The minimum packing quantity for the 6195-0060 sealed female automotive connector is 100 PCS per unit, and we also support bulk order procurement with a full box capacity of 500 PCS.
The 6195-0060 is a core product of the Sumitomo DL waterproof series, and it is fully matched with the 6195-0057 male connector for paired use.
Yes, the Sumitomo 6195-0060 is a professional sealed automotive connector with excellent waterproof and sealing performance, specially designed for automotive harness applications in harsh working environments.
