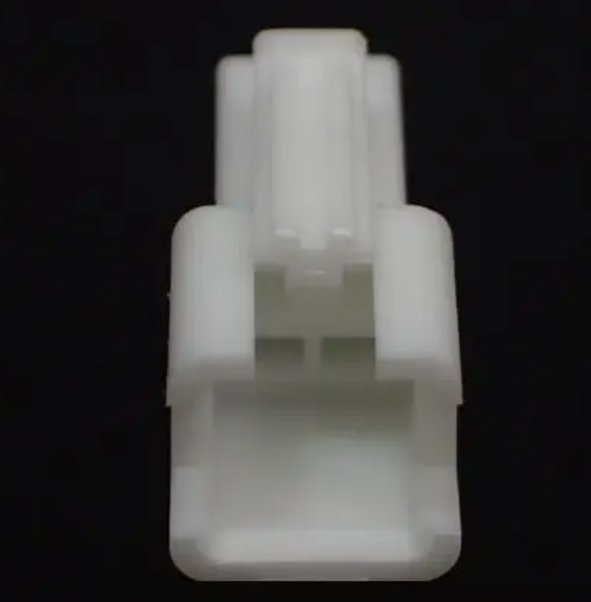

SMR-02V-N
JST
Designed specifically for automotive harness assembly and industrial wire-to-wire interconnection needs, this connector addresses core pain points of automotive and industrial clients, including vibration-induced disconnection, assembly inefficiency, and harsh environment adaptability. As a globally recognized JST wire-to-wire connector, the SMR-02V-N is trusted by automotive harness factories, electronic equipment manufacturers, and system integrators worldwide, providing a high-performance, cost-effective connection solution for mass production and custom project requirements.
Parameter | Specification |
Series Model | SM CONNECTOR Series, JST SMR-02V-N |
Connector Type | Crimp Style Wire-to-Wire Connectors, with Integrated Locking Device |
Pitch | 2.5mm |
Max Rated Current | 3A |
Max Rated Voltage | 250V |
Core Mounting Feature | Tool-free panel mounting, compatible with various panel thicknesses |
Contact Protection Design | Individual contacts fully surrounded by housing walls |
Locking Mechanism | Secure positive lock to prevent accidental disconnection |
The SMR-02V-N automotive harness connector features a precision-engineered secure lock mechanism, which effectively prevents accidental disconnection caused by vibration, shock, or frequent plugging in automotive and industrial environments. Its high contact pressure design ensures stable, low-resistance electrical contact even under long-term operation, eliminating signal interruption and power failure risks for critical systems.
Each contact of the 2.5mm crimp wire-to-wire connector is individually enclosed by reinforced housing walls, providing comprehensive protection against short circuits, dust, and debris. This design greatly improves the connector’s adaptability to harsh working conditions, extending its service life and reducing maintenance costs for B-end clients.
Unlike traditional panel-mount connectors, the JST SM series connector supports tool-free installation on panels of various thicknesses. This feature significantly reduces assembly time and labor costs in mass production lines, helping manufacturing clients optimize production processes and improve overall operational efficiency.
We provide comprehensive OEM/ODM customization solutions for global B-end clients to match diverse project requirements for JST SMR-02V-N wire-to-wire connectors. Our customizable services include custom wire harness assembly with matched crimp terminals, color-coded housing customization for circuit identification, panel mounting structure adaptation for specific equipment designs, and laser marking of client logos and part numbers. We support flexible order scales, from small-batch prototype customization to large-volume mass production, with fast sample delivery and full technical support throughout the project cycle.
As a core automotive wire-to-wire connector, the SMR-02V-N is widely used in automotive body control systems, in-vehicle entertainment systems, lighting circuits, and complete vehicle harness assembly, meeting the strict reliability requirements of the automotive industry.
It is also ideal for industrial sensor connections, automation equipment internal wiring, power supply circuits, and control system interconnection, providing stable connection solutions for harsh industrial environments.
The connector is applied to large home appliances, smart home devices, and consumer electronics internal wiring, balancing high performance and cost-effectiveness for mass production.
All JST SMR-02V-N connectors we supply strictly follow JST’s original factory quality standards, with a full-process quality control system covering incoming material inspection, production process monitoring, and finished product performance testing. Each batch of products undergoes strict electrical performance, mechanical strength, and environmental adaptability tests to ensure consistent quality. Our products have obtained global authoritative certifications including RoHS, REACH, and UL, fully complying with the environmental and safety regulations of major markets worldwide, reducing compliance risks and costs for our global B-end clients.
We offer flexible packaging solutions to meet the diverse needs of B-end clients. Standard packaging options include anti-static bulk packaging for manual assembly, and tape-and-reel packaging for automated production lines. Customized packaging with client-specified labels, part numbers, and anti-static protection is also available. For delivery, we have a stable global logistics network, supporting express delivery for urgent sample orders, and sea/air freight for bulk mass production orders. We maintain a safe stock of standard products to support flexible MOQ requirements, and can guarantee stable lead times for large-volume scheduled orders to match your supply chain planning.
The JST SMR-02V-N 2.5mm wire-to-wire connector has a maximum rated current of 3A and a maximum rated voltage of 250V, meeting the power and signal transmission needs of most automotive and industrial applications.
Yes. The SMR-02V-N is designed for tool-free installation, and can be securely mounted on panels of various thicknesses without any special tools, greatly improving assembly efficiency.
All our SM series connectors, including the SMR-02V-N, have obtained RoHS, REACH, and UL certifications, complying with global environmental and safety standards.
Yes. We provide full OEM/ODM custom wire harness assembly services, with matched crimp terminals, custom wire specifications, and length options to meet your specific project needs.
