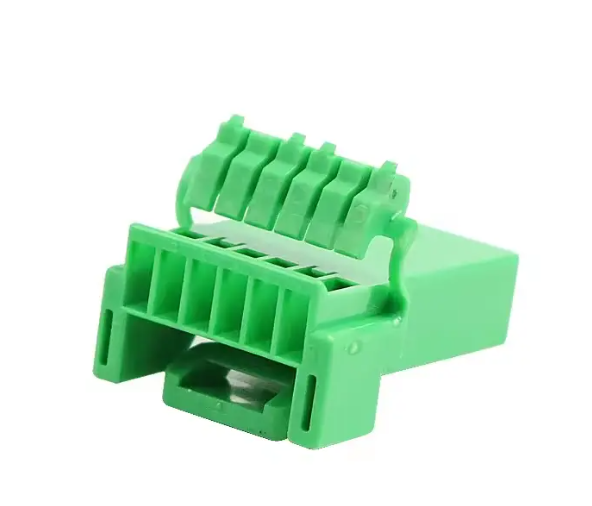

IL-AG5-6S-S3C1
JAE
As a core product of the IL-AG5 series, this 6 position receptacle (female) housing is purpose-built for stable low-voltage circuit interconnection, catering to bulk procurement needs of automotive wiring harness manufacturers, automotive electronics integrators, and industrial equipment suppliers. With a standard 2.5mm pitch, cable mount free-hanging structure, and crimp termination, this 2.5mm automotive female connector housing is fully compatible with mainstream automotive wiring processes, reducing assembly complexity and improving mass production efficiency for business partners.
Parameter | Specification |
Manufacturer | JAE Electronics |
Model Number | IL-AG5-6S-S3C1 |
Product Series | IL-AG5 |
Product Category | Automotive Connectors |
Product Type | Wire Housings |
Number of Positions | 6 Position |
Number of Rows | 1 Row |
Pitch | 2.5 mm |
Gender | Receptacle (Female) |
Contact Gender | Without Socket Contacts |
Termination Style | Crimp |
Contact Plating | Tin |
Compatible Wire Gauge | 22 AWG to 18 AWG |
Current Rating | 3 A |
Insulation Resistance | 100 MOhms |
Housing Material | Polybutylene Terephthalate (PBT) |
Operating Temperature Range | -40 °C to +85 °C |
Mounting Style | Cable Mount / Free Hanging |
Color | Green |
Factory Pack Quantity | 1200 |
Unit Weight | 0.073370 oz |
This 6 position cable mount automotive connector adopts a standardized 2.5mm pitch single-row layout, ensuring accurate contact alignment and consistent signal transmission. With 3A rated current and 100 MOhms insulation resistance, it meets the electrical requirements of most automotive low-voltage circuits, minimizing signal loss and short-circuit risks in mass production. The tin-plated contact design delivers excellent conductivity and corrosion resistance, extending the service life of wiring harness assemblies.
Engineered with high-grade PBT housing, the IL-AG5-6S-S3C1 JAE connector housing offers superior mechanical strength and dimensional stability. It supports a -40 °C to +85 °C operating temperature range, adapting to fluctuating cabin temperatures. The crimp termination ensures a secure, vibration-resistant connection, suitable for long-term automotive vibration environments. The straight mounting angle is fully compatible with automated assembly equipment, boosting production efficiency for business manufacturers.
We provide tailored OEM/ODM solutions for the JAE IL-AG5 series connector housing to meet diverse business needs: custom anti-static or labeled packaging for inventory management, laser marking of logos and traceability codes, custom housing color matching, terminal matching technical support, and small-batch trial production for new project development.
The 2.5mm 6 position automotive female connector housing is widely used in: automotive interior electronics (dashboard, infotainment, door control modules), vehicle body control systems (lighting, window lift, central locking), low-voltage automotive auxiliary circuits, industrial automation wiring harnesses, and aftermarket automotive electronics accessories.
All products are manufactured in strict accordance with JAE’s global quality management system, fully RoHS compliant. We implement multi-stage inspections, including dimensional accuracy testing, electrical performance verification, and batch sampling. Each batch has a complete traceability system, ensuring consistent, qualified products that meet automotive industry quality standards.
Standard factory packaging is bulk packaging (1200 pieces per pack). We also offer customizable anti-static, tray, or custom box packaging. For global business customers, we provide flexible delivery: sample delivery for verification, small-batch spot delivery, and scheduled bulk order shipping with stable lead times.
It is compatible with 22 AWG to 18 AWG wire gauges, covering the most commonly used specifications in automotive wiring harness production.
No, this product is a connector housing only, without pre-installed socket contacts. Customers can flexibly select matching crimp terminals according to project needs.
It supports a -40 °C to +85 °C operating temperature range, adapting to conventional automotive cabin and indoor industrial equipment environments.
