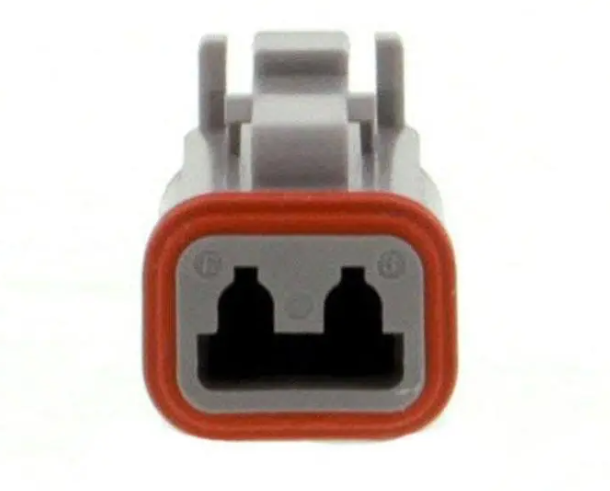

Sealable 2P DT06-2S Auto Female Connector

Product Overview

The DT06-2S Sealable Automotive Wire Connector serves as a foundational wire-to-wire connectivity component engineered specifically for demanding vehicular and industrial electrical architectures. Functioning as a dedicated female terminal housing, this unit delivers dependable power and signal routing through environments where standard components typically fail. When handled, the rigid matte finish of the exterior shell conveys its industrial-grade durability, while the precise molding ensures a satisfying, audible click upon mating, confirming a secure lock. Its compact, sealed electrical connector framework effectively isolates internal contacts from moisture, airborne particulates, and corrosive fluids. Designed to meet the stringent demands of modern engineering, this automotive wiring solution minimizes voltage drops and prevents terminal degradation over extended operational lifespans. Whether integrated into primary factory assembly lines or utilized for critical aftermarket system upgrades, the DT06-2S provides procurement teams and engineers with a consistent, reliable mechanism to maintain uninterrupted electrical flow across complex wiring harnesses.

Scenario-Based Solutions

Automotive Engine Bay Wiring

Engine compartments present a severe operating environment characterized by extreme thermal cycling, relentless mechanical vibration, and frequent exposure to volatile fluids. The DT06-2S tackles these challenges directly through its advanced sealable design and high-temperature tolerance. Capable of maintaining zero signal attenuation across extreme temperature differentials from -55°C to 125°C, it prevents thermal expansion from compromising the connection. The housing actively blocks engine oil, coolant, and road spray from infiltrating the contact interfaces, safeguarding critical power circuits. This level of protection significantly reduces the risk of electrical shorts and intermittent failures, thereby lowering warranty claims and maintenance downtime for vehicle manufacturers and fleet operators.

Off-Road and Outdoor Equipment

Agricultural machinery, construction vehicles, and recreational off-road gear constantly battle the elements, operating through thick mud, abrasive dust, and torrential rain. In these unforgiving settings, the waterproof wire connector acts as an impenetrable barrier. Meeting stringent IP68 and IP6K9K ingress protection standards, it ensures that neither deep water submersion nor high-pressure steam cleaning will breach the internal cavity. The enhanced seal retention system grips the wire insulation tightly, shielding the conductive pathways from debris accumulation. This consistent performance allows operators in remote, harsh locations to rely on their equipment without fear of sudden electrical dropouts caused by environmental contamination.

Heavy-Duty Commercial Vehicles

Long-haul trucks, transit buses, and commercial transport fleets require electrical components capable of enduring thousands of hours of continuous operation and low-frequency chassis vibration. The integrated locking mechanism of the DT06-2S ensures an unwavering physical connection, completely eliminating the risk of accidental disconnection during transit over rough terrain. Supporting 12V, 24V, and 48V electrical architectures with a maximum current rating of 13A, it efficiently handles the power demands of modern commercial vehicles. As a versatile harsh environment connector, it integrates easily into standard vehicle wiring setups, providing maintenance teams with a dependable solution for long-term fleet reliability.

Product Features

Advanced Sealable Construction: Engineered with enhanced seal retention technology, this unit meets rigorous IP68 and IP6K9K waterproof and dustproof standards, as well as the UL-94 flame retardant rating, ensuring total compliance with SAE J2030 automotive specifications for maximum environmental defense.

Rectangular Form Factor: The compact, space-efficient geometric profile allows the housing to fit precisely into densely packed engine bays and restricted vehicle chassis compartments without causing cable strain.

Comprehensive Wire-to-Wire Compatibility: Designed for direct integration, it perfectly accommodates standard Size 16 male and female terminals, standard Wedgelocks, and the matching DT04-2P receptacle, supporting wire gauges from 14 to 20 AWG for direct system replacements.

Integrated Primary Lock: A reinforced physical latching mechanism provides exceptional mating stability, resisting severe mechanical shocks and constant vibration to prevent unintended circuit disconnections.

Optimized Female Terminal Housing: Molded to precisely align and secure female socket contacts, offering broad interoperability with existing industrial wiring systems and facilitating straightforward harness assembly.

High-Capacity Electrical Performance: Built to handle modern power demands, the connector safely supports 12V, 24V, and 48V systems while carrying up to a 13A current rating without generating excessive heat or signal loss.

Product Details

Crafted from industrial-grade PA GF (glass-fiber reinforced polyamide), the DT06-2S housing exhibits exceptional structural rigidity and resistance to chemical corrosion, including prolonged exposure to automotive oils and solvents. The socket contact type architecture guarantees reliable electrical conductivity, establishing a firm metal-to-metal interface that minimizes resistance across critical circuits. To support precise manufacturing and assembly, we provide comprehensive guidance on compatible crimping tools and terminal extraction instruments. Utilizing the correct tooling standardizes the production line assembly process, significantly lowering the rate of installation errors and preventing wire pull-out issues. The resilient housing material withstands significant physical impacts while maintaining its dimensional stability, ensuring that the internal seals remain compressed and effective. As an established automotive wire connector, it conforms to standardized wiring practices, allowing assembly technicians to achieve consistent, repeatable results without relying on unverified assembly methods.

Customization Services

We deliver comprehensive customization services and engineering support tailored to specific enterprise project requirements. Our OEM support encompasses modifications to housing specifications, specialized terminal compatibility, and specific branding configurations to match distinct vehicle platforms or heavy machinery models. To accelerate your research and development phase, our technical teams supply complete 3D CAD models, detailed 2D product drawings, and comprehensive Application Specifications, streamlining the system integration process for your engineering staff. Furthermore, we maintain a highly capable supply chain designed to support large-scale manufacturing operations. We offer flexible minimum order quantities and utilize standardized industrial packaging, such as 1,600 pieces per carton, to optimize inventory management. With substantial on-hand stock, we ensure rapid dispatch and reliable delivery schedules, safeguarding your enterprise-level mass production timelines against unexpected delays. For clients requiring unique modifications, our engineers collaborate directly to finalize configurations that adhere to strict industry compliance.
