Waterproof Automotive Connectors 4 Pin Wire to Board Crimp style Connectors

Product Description

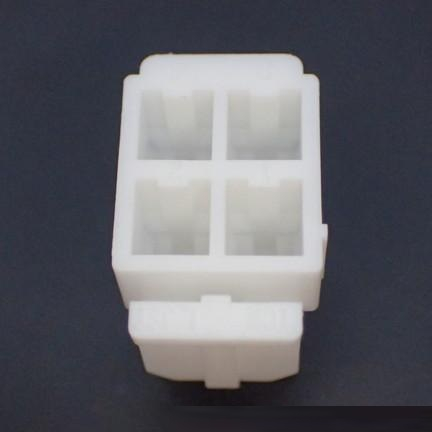

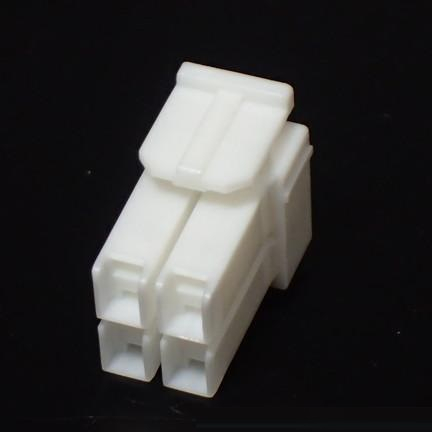

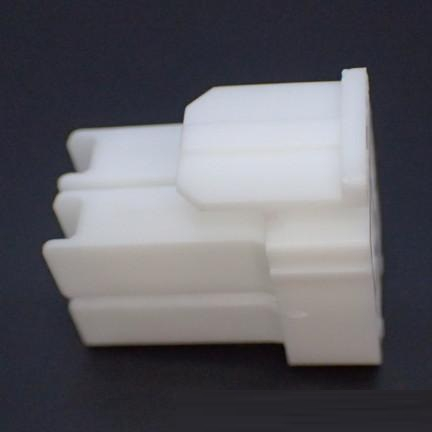

The XLP-04V waterproof automotive connector represents a highly dependable 4-pin wire-to-board crimp style solution engineered for demanding electrical environments. When handling this component, technicians immediately notice the rigid, structurally reinforced thermoplastic housing that resists deformation even under significant mechanical stress. Designed to maintain continuous power and signal integrity, this connector thrives in extreme temperature fluctuations, high humidity, and corrosive atmospheres typical of engine compartments and undercarriage enclosures.

By integrating industrial-grade sealing techniques, the assembly achieves exceptional ingress protection against dust and moisture, meeting rigorous IP67/IP68 equivalent performance expectations. This ensures that delicate internal contacts remain completely dry and oxidation-free over the vehicle's lifespan. The physical mating process offers a distinct, crisp "click," providing operators with immediate acoustic and tactile confirmation that the connection is fully seated and locked. This intuitive feedback eliminates guesswork during rapid assembly line operations. Furthermore, the XLP-04V model is fully certified under RoHS, REACH, and UL standards, confirming its strict adherence to global environmental and safety protocols. Offering both top and side entry installation configurations, it delivers exceptional routing flexibility for complex wire-to-board layouts where spatial constraints are a primary concern.

Product Advantage

To ensure long-term operational stability, this global well-known connector brand incorporates several advanced engineering principles focused on assembly efficiency and fault prevention.

Intelligent Poka-Yoke Design

Human error during assembly can lead to costly system failures. To mitigate this, the housing features precise polarity keying and an asymmetrical molded profile. This physical barrier makes it impossible to insert the plug incorrectly, protecting the internal pins from bending or crushing forces. The smooth exterior finish also includes visual alignment indicators to guide the operator's hand effortlessly.

Mechanical Reliability and TPA Integration

Automotive environments subject electronic components to relentless, high-frequency vibrations. This connector is equipped with a Terminal Position Assurance (TPA) mechanism alongside a heavy-duty locking friction latch. Once engaged, the TPA physically blocks the terminals from backing out of their cavities, ensuring the connection remains steadfast even when exposed to continuous mechanical shock on unpaved roads.

Electrical Safety and Material Excellence

Constructed from specialized UL94V-0 flame-retardant polymers, the housing self-extinguishes within seconds if exposed to an open flame, preventing the spread of fire within the vehicle's electrical architecture. Additionally, the contact geometry is optimized to reduce electrical resistance, which in turn minimizes heat generation during continuous 10A current loads. The advanced materials also provide inherent resistance to electromagnetic interference (EMI), preserving signal clarity.

Versatile Processing and After-Sales Service

The design accommodates automated crimping machinery and supports various potting processes for enhanced environmental sealing. It is compatible with a wide spectrum of AWG wire sizes, granting engineers the flexibility to design custom harnesses without sourcing multiple connector types. Backed by comprehensive after-sales service, procurement teams can rely on consistent supply chain stability and technical troubleshooting support.

Technical Parameters

Evaluating the exact specifications of the XLP-04V reveals its capability to handle substantial electrical loads while maintaining a highly efficient footprint. The precise 5mm pitch provides adequate spatial separation between adjacent circuits, effectively preventing electrical arcing and short circuits even under fluctuating voltage conditions. With a rated capacity of 10A specifically configured for 2 circuits using AWG#16 wiring, this unit delivers consistent power transmission without excessive thermal buildup. The secure locking device integrated into the architecture guarantees that the disconnectable type mechanism only releases when intentionally actuated by a technician, safeguarding against accidental unplugging. Whether utilizing the top entry or side entry installation direction, engineers can depend on these verified metrics to integrate the XL CONNECTOR series into sophisticated power distribution modules safely.

Product Uses

The versatility of these 4-pin waterproof connectors makes them an indispensable component across a broad spectrum of the automotive industry. They are primarily engineered for integration into complex harness assemblies, acting as the critical junction points that link various electronic control units to peripheral devices.

• Battery Management Systems (BMS): In electric and hybrid powertrains, the connector accurately transmits voltage and temperature data from battery cells to the main controller. The secure locking device prevents data loss caused by continuous road vibrations.
• Advanced Driver Assistance Systems (ADAS): Reliable signal transmission ensures that radar sensors, cameras, and LiDAR modules communicate instantly with the central processing unit, facilitating rapid decision-making for autonomous braking and lane-keeping functions.
• Automotive Lighting Modules: The industrial-grade sealing and 150V rated voltage capacity easily support high-intensity LED headlamps, dynamic turn signals, and ambient cabin lighting, keeping moisture away from sensitive contacts.
• Custom Harness Assemblies: By supporting automated potting and crimping processes, these components allow wire harness manufacturers to produce large-scale, customized assemblies that fit exactly into the tight confines of modern vehicle architectures.
