| Quantity: | |
|---|---|

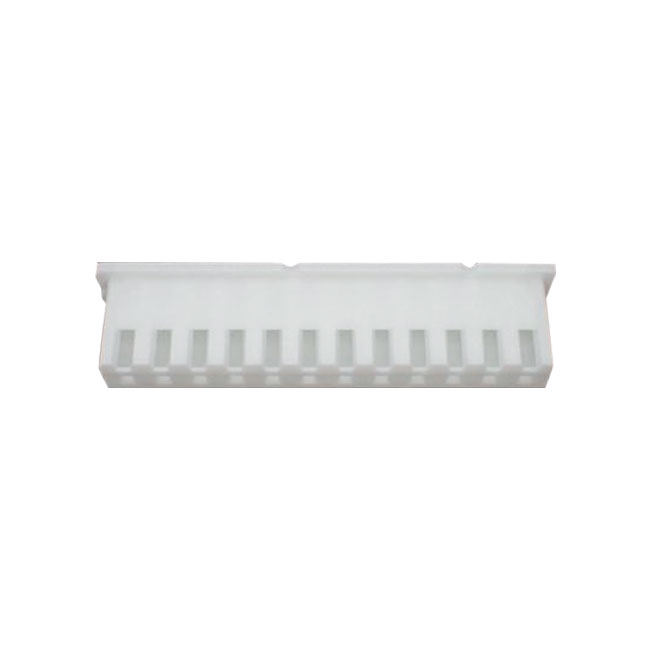

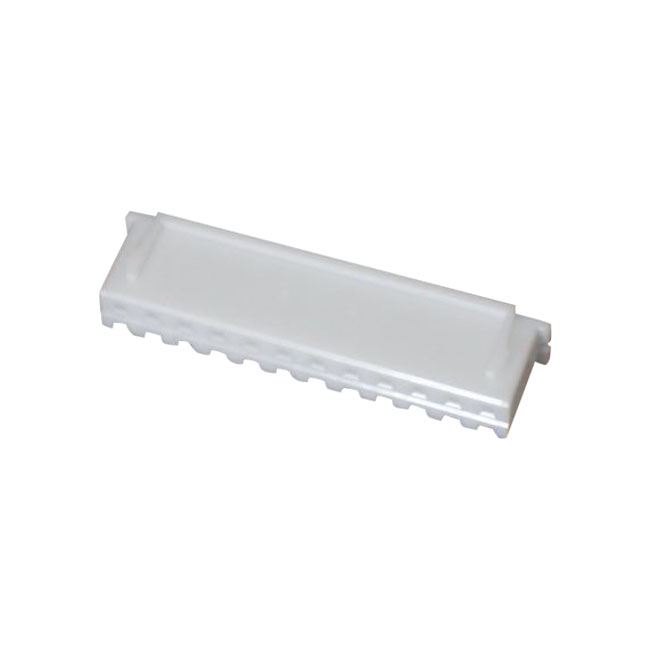

The XHP-12 wire-to-board receptacle housing represents a highly refined evolution in compact circuit connections. Engineered directly from the proven reliability and extensive versatility found in our established NH series connectors, this specific twelve-position component delivers exceptional performance in confined spatial environments. When fully mated, the assembly maintains an incredibly low profile, featuring a precise mounting height of exactly 9.8mm. This minimized vertical footprint provides engineers and system architects with significant spatial advantages when designing densely populated printed circuit boards.
Manufactured utilizing premium-grade Polyamide (PA6) nylon, the housing exhibits outstanding electrical insulation properties alongside inherent flame retardancy for long-term operational safety. Handling the component reveals a rigid, structurally sound thermoplastic body that actively resists deformation during manual or automated assembly. During the mating process, operators will notice a distinct, reassuring tactile click, confirming secure physical engagement. This housing is perfectly calibrated to accommodate standard XH series shrouded headers, including variations such as the B12B and S12B-XH-A, as well as dedicated crimp terminals, creating a comprehensive, single-source wire harness assembly solution.
Understanding the precise electrical and mechanical specifications is crucial for successful integration into your electrical architecture. The XHP-12 operates with exceptional stability across a broad thermal spectrum, maintaining reliable electrical transmission from -25°C up to 85°C. This wide operating temperature range ensures consistent functionality regardless of severe environmental fluctuations. Furthermore, the system is engineered to accommodate a versatile range of wire gauges, broadly compatible with 30 AWG through 22 AWG wire sizes. This flexibility supports highly efficient wire-to-board crimping processes across various production lines. Below are the exact technical specifications defining this component's operational parameters.
| Series title | XH CONNECTOR |
| Type | Wire to Board Crimp style Connectors |
| Type | Crimp style, Shrouded header type |
| Connection Feature | Disconnectable type |
| pitch | 2.5mm |
| Rated Current | 3A (AWG#22) |
| Rated Voltage | 250V |
| installation direction | Top entry, Side entry |
The primary application for this twelve-position receptacle lies within the demanding automotive industry. These connectors serve as vital nerve centers for vehicular electronics, managing critical signal distribution across complex onboard systems. From dashboard instrumentation panels to interior lighting controls and sensor arrays, the secure locking mechanism and vibration-resistant design ensure uninterrupted performance. The durable nylon housing protects delicate crimped connections from the harsh realities of vehicular operation, including temperature cycling and mechanical stress.
Beyond direct vehicle integration, these components are foundational elements for specialized wire harness assemblies. Contract manufacturers and harness fabrication facilities rely on the consistent dimensional tolerances of the XHP-12 to maintain rapid, error-free production lines. The housing's design facilitates rapid terminal insertion, making it an ideal choice for complex, multi-branch harness architectures. Whether utilized in industrial control panels, consumer appliances, or sophisticated diagnostic equipment, this connector streamlines the assembly process while ensuring a permanent, reliable electrical pathway.
To support continuous manufacturing operations and extensive production schedules, the XHP-12 connectors are supplied in optimized bulk packaging formats. This standard bulk delivery method is specifically structured to facilitate large-scale inventory management and streamline assembly line distribution. By providing consistent, high-volume shipments, we empower procurement departments to maintain stable inventory levels and execute long-term production planning with absolute confidence. The packaging materials are carefully selected to protect the nylon housings from environmental moisture and physical abrasion during transit, ensuring every single piece arrives at your facility in pristine, ready-to-assemble condition. This dependable supply chain architecture is designed to eliminate production bottlenecks and reduce overall component lead times.
