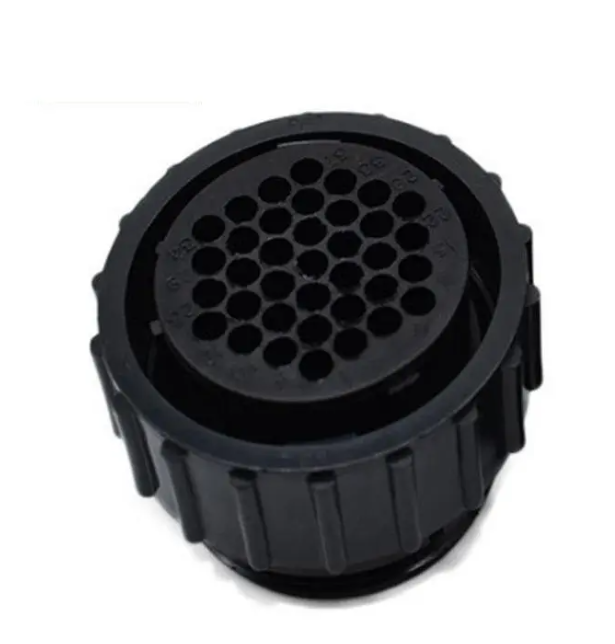

600VDC 37-Pin Circular Power Housing

Product Overview

The 600VDC 37-Pin Circular Power Housing (Part Number 206150-1) serves as a heavy-duty wire-to-wire connector engineered for demanding high-voltage and high-current applications. Belonging to the renowned CPC Series 6, this sealed automotive connector utilizes a circular form factor that naturally distributes mechanical stress, ensuring exceptional environmental protection. Featuring a dense 37-position layout, it effectively manages complex power distribution networks within heavy-duty trucks, construction machinery, and off-grid equipment. The housing is molded from premium glass-filled nylon (Nylon 6/6 GF) rated at UL 94V-0 for superior flame retardance, while the internal architecture accommodates stainless steel and brass alloy components. This combination yields a tactile, rigid structure that resists corrosive agents, heavy impacts, and severe thermal cycling, delivering steadfast electrical continuity in the most unforgiving operational landscapes.

Scenario-Based Solutions

Heavy-Duty Vehicle Power Distribution

Commercial fleets, including heavy-duty trucks, articulated buses, and agricultural combine harvesters, demand electrical interconnects capable of sustaining heavy electrical loads under relentless mechanical vibration. This circular power connector serves as the central nervous system in engine bays, exposed chassis wiring, and power take-off (PTO) mechanisms. By reliably distributing 600VDC power to hydraulic pumps, air compressors, and auxiliary diagnostic equipment, it prevents intermittent power failures that cause costly fleet downtime. The secure mating mechanism produces a distinct, audible click upon locking, giving assembly technicians immediate tactile confirmation of a secure connection. Its tightly sealed interface actively repels oil, diesel fuel, and road grime, drastically reducing the frequency of maintenance interventions and keeping critical transport vehicles operational during peak seasons.

Extreme Environment Operations

Equipment deployed in punishing environments—such as deep-shaft mining operations, offshore oil rigs, and arid desert solar farms—requires interconnects that survive extreme thermal shifts and physical abuse. The connector’s IP67/IP68-rated sealing architecture acts as an impenetrable barrier against fine dust ingress and prolonged liquid submersion. Operators will notice the resilient, textured exterior of the Nylon 6/6 GF housing, which provides a secure grip even when handled with heavy industrial gloves. Capable of maintaining structural integrity from freezing arctic conditions to intense radiant heat, this housing prevents material embrittlement. It absorbs shock and vibration inherent in military transport vehicles and off-road excavation machinery, ensuring that critical power delivery remains uninterrupted regardless of the external environmental severity.

Product Features

Advanced Sealing Technology

The 600VDC 37-Pin Circular Power Housing incorporates an advanced, multi-point sealing mechanism that achieves strict IP67 and IP68 protection standards. This high-efficiency sealing performance is achieved through precision-molded elastomeric gaskets that compress evenly upon mating, creating a watertight and dustproof barrier.

• Submersion Resilience: Maintains dry internal contacts even when temporarily submerged in muddy trenches or exposed to high-pressure washdowns.
• Chemical Resistance: The sealing materials repel aggressive industrial fluids, including hydraulic oils, brake fluids, and agricultural chemicals.
• Maintenance Efficiency: Designed for practical field service, the seals can be cleaned and inspected without requiring the complete replacement of the connector assembly, thereby lowering long-term operational expenditures.

Robust Construction & Durability

Safety and structural longevity are foundational to this connector's design. The primary housing is injection-molded from glass-fiber reinforced nylon (Nylon 6/6 GF), a material chosen for its exceptional tensile strength and thermal stability.

• Flame Retardance: Carries a strict UL 94V-0 safety rating, ensuring self-extinguishing properties in the event of an electrical fault, a critical requirement for high-voltage 600VDC systems.
• Regulatory Compliance: Fully backed by comprehensive agency approvals, including UL and CSA certifications, alongside strict adherence to RoHS and REACH environmental directives.
• Mechanical Integrity: The circular geometry inherently resists deformation under heavy loads, while the internal retention clips—crafted from stainless steel and brass alloys—ensure contacts remain firmly seated despite thousands of mating cycles.

Compatibility & System Integration

Achieving a reliable power network requires precise integration with corresponding components. This 37-position housing is engineered to work flawlessly within the broader Tyco CPC Series 6 ecosystem, offering procurement teams a comprehensive, one-stop interconnect solution.

• Mating Components: Fully compatible with standard Series 6 receptacles, ensuring precise pin-to-socket alignment that minimizes contact resistance and prevents localized heat generation.
• Accessory Ecosystem: Readily accepts a wide array of compatible parts, including specialized cable clamps, heat-shrink boots, threaded backshells, and environmental sealing caps.
• Terminal Integration: Designed to securely house precision-stamped or machined contacts, allowing for flexible wire gauge selection depending on the specific current requirements of the application.

Product Details

Contact Design & Performance

Electrical efficiency is maximized through precision-engineered contact cavities designed to house low-resistance terminals. When populated, the 37-pin configuration facilitates the simultaneous transmission of high-current power and sensitive signal data without cross-talk or thermal degradation. The internal geometry of the housing ensures that each contact is isolated, preventing arc-over in 600VDC applications. The mating mechanism features a threaded coupling ring that glides smoothly during engagement, culminating in a positive, tactile lock. This anti-vibration locking system prevents accidental decoupling caused by engine resonance or mechanical shock, ensuring that the electrical pathway remains continuous and secure throughout the operational lifespan of the machinery.

Physical Dimensions & Installation

The circular form factor of the 206150-1 housing is specifically optimized to balance high-density pin counts with a compact spatial footprint, making it highly suitable for congested engine compartments and densely packed control panels. To support precise system design, we provide comprehensive technical documentation, including 2D dimensional drawings, 3D CAD models (STEP/IGES formats), and detailed product specifications.

• Assembly Support: We supply detailed Application Specifications alongside recommendations for dedicated tooling, including calibrated crimpers, insertion tools, and extraction probes, dramatically accelerating assembly line throughput.
• Mounting Flexibility: Features standardized mounting flanges that align with common industrial panel cutouts, enabling straightforward, secure installation.
• Ergonomic Handling: The exterior shell includes precision-molded knurling, providing technicians with a firm, non-slip grip during manual installation, even in oily or wet conditions.

Customization Services

Tailored Solutions for Applications

Recognizing that standard configurations may not address every complex engineering challenge, we offer extensive customizable connector solutions for the 600VDC 37-Pin Circular Power Housing. Our engineering specialists collaborate directly with your design teams to develop tailored interconnect solutions that precisely match your voltage, current, and spatial constraints. Modifications can include specialized contact plating for highly corrosive environments, alternative housing materials for extreme thermal applications, and fully integrated, pre-assembled cable harnesses cut to custom lengths. By engaging in a collaborative design process from initial concept through to final production, we ensure that the resulting connector solution integrates directly into your proprietary equipment, enhancing overall system reliability and performance.

Logistics & Support Services

Reliable product availability is just as critical as technical performance. We have structured our supply chain operations to provide maximum transparency and efficiency for large-scale procurement programs. Buyers benefit from clear visibility into real-time inventory status, flexible Minimum Order Quantities (MOQs), and highly competitive tiered pricing structures.

• Packaging Options: Deliveries can be configured in bulk industrial trays for automated assembly lines, or individually labeled, anti-static bags for precise inventory management and aftermarket distribution.
• Global Fulfillment: Utilizing an expansive international distribution network, we guarantee accurate lead times and offer expedited shipping protocols to prevent production bottlenecks during urgent shortages.
• Lifecycle Support: Beyond physical delivery, we provide extensive post-sale technical support, encompassing on-site installation training, comprehensive troubleshooting documentation, and long-term maintenance guidelines.
