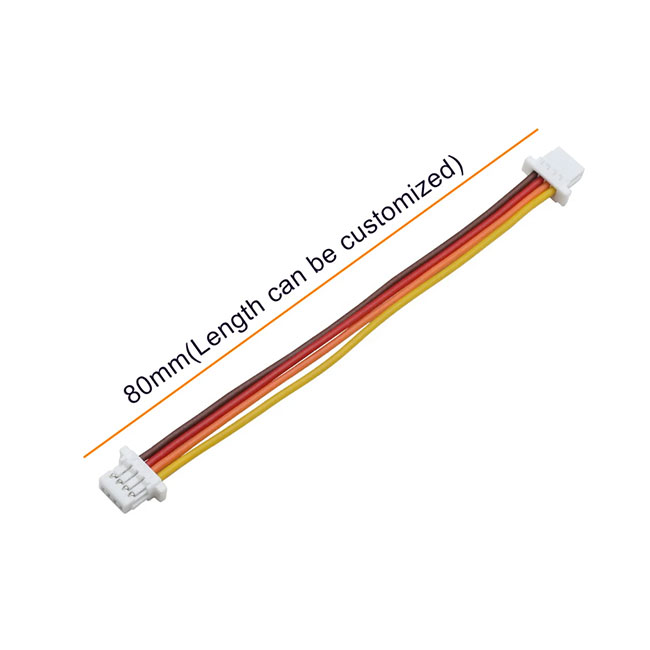

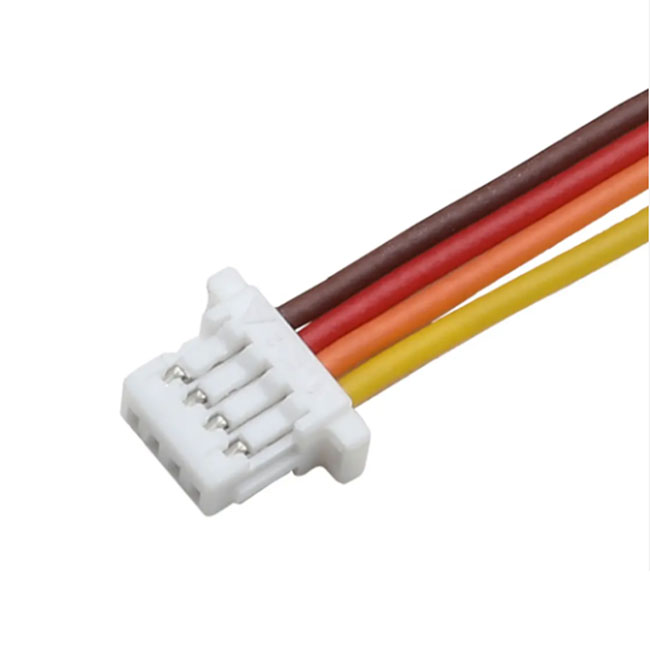

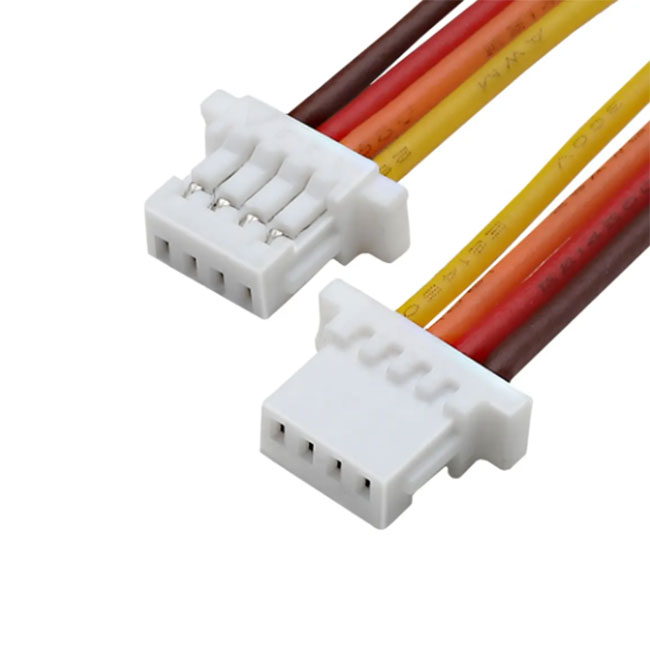

The SHR-04V-S-B 4 Pin 1.0mm Pitch Plastic Connector Wire Harness serves as a dependable conduit for power and signal transmission within compact electronic assemblies. Engineered with a rigid, thermally stable PA66 flame-retardant shell, the housing provides exceptional physical protection for internal contacts. When mating the connector, users will notice a distinct, tactile click, confirming a secure and precise lock that prevents accidental disconnections. The internal tin-plated phosphor bronze terminals are designed to maintain an exceptionally low contact resistance, ensuring stable electrical conductivity even after repeated insertion cycles.
We provide comprehensive ODM/OEM services with a fast response to customer needs. Our dedicated engineering team delivers technical support for connector and cable assembly structure design, as well as precise mold manufacturing. We adapt to your specific project requirements, offering deep customization options for wire length, insulation color, shielding layers, and terminal types. Furthermore, we provide highly cost-effective domestic equivalent connector alternatives. These equivalents match the original performance metrics without introducing patent risks, effectively reducing procurement expenses and shortening the overall supply chain cycle. We actively support small batch customization to meet customers' personalized needs, allowing for agile prototyping and localized testing.
Every wire harness undergoes a rigorous three-stage quality inspection process. We enforce 100% raw material verification before assembly begins. During production, the harnesses are subjected to specialized continuity checks and mechanical pull-force testing to ensure zero defects in the final crimp. The materials meet the strict requirements of environmental protection, effectively save energy, and reduce the pollution of harmful substances during the manufacturing phase.
The following specifications detail the exact parameters of the SHR-04V-S-B model. This JST wiring Molex electronic cable is engineered for precise integration into densely populated printed circuit boards. The customizable wire gauge, ranging from 28AWG to 32AWG, offers exceptional flexibility for tight routing spaces while maintaining adequate current-carrying capacity for sensitive electronic components.
| Application: | Electronic |
| Model Number: | SHR-04V-S-B |
| Color: | Black |
| Product name: | JST wiring Molex electronic cable |
| MOQ: | 50PCS |
| Length: | Customized |
| Pitch: | 1.0mm |
| Connector: | JST MOLEX TE |
| Material: | PA66 |
| Wire Color: | customizable |
| Wire Gauge: | 28AWG-32AWG |
| Certification: | ISO9001 |
| Service: | ODM/OEM |
Our manufacturing processes strictly adhere to ISO9001 certification standards. Furthermore, the final product is fully compliant with UL, RoHS, CE, and SGS international safety and environmental directives. This comprehensive compliance profile ensures that your final equipment can be exported to global markets without regulatory friction.
Proper packaging is critical to maintaining the physical integrity of the wire harnesses during transit. Each unit is carefully handled to prevent stress on the terminal joints. For single-unit evaluations, the Selling Units are processed as a Single item. The Single package size measures 20X15X1cm, with a Single gross weight of 0.100 kg.
For larger production runs, our Packaging Details are structured to maximize protection and shipping efficiency. The harnesses are grouped and sealed in a protective PE bag measuring 180*260 mm, shielding the exposed wire ends and housings from ambient moisture. These bags are then systematically packed into a reinforced corrugated Carton measuring 460*300*300 mm. Each carton holds a Qtn of 150pcs/ctn, resulting in a total GW of 13 KG.
We operate a highly flexible supply chain designed to match your project timelines. Standard orders are typically processed and ready for dispatch within a rapid 7 to 10-day window. For larger volume requirements, our production scheduling accommodates a 2 to 3-week turnaround, ensuring your assembly lines remain consistently supplied.
