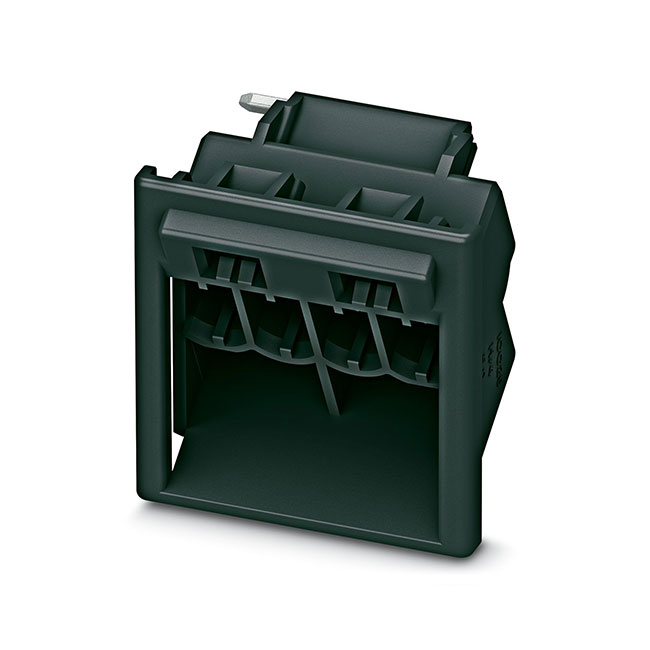

1072486 - PHOENIX

Type: Header perpendicular to the PCB

Product type: PCB headers

Product family: ICC..-H/..L5,0

Number of position: 4

Pitc: 5 mm

Surface characteristics: Tin-plated

Metal surface terminal point (top layer): Tin (2 - 4 µm Sn)

Color (Housing): black (9005)

Insulating material: PA

CTI according to IEC 60112: 600

Flammability rating according to UL 94: V0

Glow wire flammability index GWFI according to EN 60695-2-12: 850

Glow wire ignition temperature GWIT according to EN 60695-2-13: 775

Temperature for the ball pressure test according to EN 60695-10-2: 125 °C

Packing unit: 50 pc

Minimum order quantity: 50 pc

Product key: ACHAFB

GTIN: 4055626765211

Weight per piece (including packing): 5.23 g

Weight per piece (excluding packing): 3.9 g

Customs tariff number: 85366930

Country of origin: PL
