Automotive Terminals 1062-12-0144

Product Description

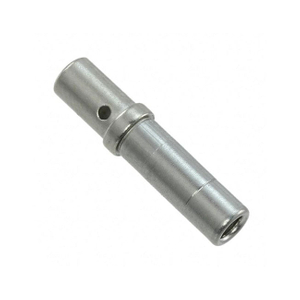

The foundation of any dependable electrical architecture lies in the integrity of its connections. The DEUTSCH Common Contact system represents a pinnacle of engineering for heavy-duty vehicle and industrial wiring networks. When technicians handle the 1062-12-0144 socket terminal, they immediately notice the precision of the stamped and formed copper alloy, finished with a distinct, reflective gold plating that catches the light. This is not merely an aesthetic choice; the meticulously applied surface treatment provides an exceptional defense against oxidation and corrosion. In environments where wiring harnesses are subjected to road salts, aggressive engine fluids, and pervasive atmospheric moisture, this terminal ensures that the electrical pathway remains uncompromised. Upon insertion into its corresponding connector housing, the terminal delivers a definitive, tactile click—a physical confirmation that the locking tang has engaged securely and is ready to withstand severe operational vibrations.

Designed to form the critical nervous system of demanding electrical applications, this socket terminal prevents micro-fretting and maintains continuous signal and power delivery. Below are the precise technical specifications that define this component's operational parameters:

Material Integrity & Surface Finish

The foundation of this terminal is an engineered copper alloy substrate, chosen specifically for its optimal balance between electrical conductivity and mechanical spring properties. The gold (Au) contact surface is applied with exacting precision to prevent micro-fretting corrosion—a frequent cause of electrical failure in environments characterized by constant engine vibration and mechanical shock. This specialized plating guarantees a stable, low-resistance connection over the entire lifecycle of the vehicle, eliminating intermittent signal drops and reducing the need for costly field maintenance.

Electrical Performance Capabilities

Engineered to handle significant electrical loads, this socket is rated for 25-40A normal power transmission. It effectively manages power distribution for heavy-duty lighting arrays, industrial actuators, and essential engine control units without succumbing to thermal degradation. The capacity to sustain such current levels prevents localized heating at the contact point, safeguarding the structural integrity of the surrounding plastic connector housing and preventing the wire insulation from melting or becoming brittle over time.

Extreme Environmental Adaptability

The engine bay and undercarriage of heavy machinery present brutal operating conditions. This terminal is constructed to perform reliably across a broad and unforgiving temperature spectrum, from a freezing -55°C up to a blistering 150°C. Whether deployed in arctic mining equipment exposed to sub-zero starts, or in agricultural machinery operating during the peak of summer heat, the metal retains its tension and conductive efficiency. The structural design ensures that thermal expansion and contraction do not compromise the mating force of the socket.

Compatibility & System Integration

Perfectly matched for wire sizes between 14-12 AWG (2-3 mm²) and accommodating insulation diameters ranging from 2.9mm to 4.5mm, this component integrates flawlessly into the established DEUTSCH connector ecosystem. When properly crimped and inserted, it works in tandem with silicone wire seals to create an impenetrable barrier against dust, dirt, and water ingress. This exact dimensional matching ensures that harness manufacturers can achieve IP-rated sealing without forcing or modifying the components, maintaining the integrity of the entire electrical assembly.

Manufacturing & Engineering Support

Beyond the physical attributes of the terminal itself, successful implementation requires a streamlined path from engineering design to mass production. The 1062-12-0144 terminal is supported by a comprehensive ecosystem of tooling, data, and quality assurance protocols designed to accelerate project timelines and ensure absolute consistency on the factory floor.

• Processing & Assembly Efficiency: The F-Crimp design of these stamped and formed terminals is optimized for high-volume harness production. Supplied on continuous reels containing 2,500 pieces, they feed effortlessly into automated applicator presses. Factory operators experience a smooth, rhythmic assembly process that drastically reduces cycle times while maintaining absolute consistency in every crimp. The precise material thickness ensures the crimp wings fold perfectly over both the copper strands and the insulation, providing maximum pull-out force and strain relief.
• Tooling & Technical Integration: To accelerate the engineering phase, complete 3D CAD models and detailed application specifications are readily available. This allows design teams to virtually map out wiring architectures, calculate bend radii, and validate clearances before physical prototyping begins. Furthermore, access to dedicated crimping applicators and specialized extraction tools ensures that both initial assembly and field maintenance are performed with exacting precision, eliminating the risk of terminal damage or housing deformation during rework.
• Quality Control & Compliance: Every production batch of these automotive terminals is subjected to stringent automotive-grade testing protocols. From rapid thermal shock cycles to multi-axis vibration resistance and millivolt drop analysis, the validation process guarantees unparalleled reliability. Accompanied by comprehensive environmental compliance declarations, these terminals provide procurement and engineering teams with the documented assurance that they are sourcing components meeting the strictest global regulatory and performance standards.
